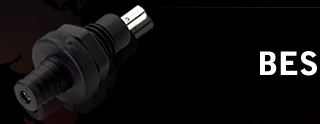

太陽能接頭 Solar Connector
如有任何太陽能接頭 Solar Connector的需求，或想獲取更多資料，請來信讓我們知道，謝謝！聯絡我們
 |
 |
| |
 |
|
 |
 |
|
| Type / module number |
PV-P1_20 & PV-J1_20 |
| Size, mm (L x Ø) |
PV-P1_20, Positive |
40.3 x 13.3 |
| PV-J1_20, Negative |
42.5 x 13.3 |
| Conformity standards |
UL 1703 |
Intend to apply |
| EN 50521: 2008 |
R 44 780 11 397245 |
| Others |
IEC61215, IEC 61646, IEC 61730 |
| Rated voltages |
DC 1000V (TÜV) |
| Rated currents |
20A |
| Contact resistance |
≦ 0.25 mΩ |
| Wire size range (mm2) |
2.5 & 4 |
| Protection degree |
IP68(1.5m, 24hr) |
| Overvoltage category |
III, 8kV |
| Flammability class |
UL94-V0 |
| Material |
Insulation |
TPE/PA |
| Contact |
Cu/Tin plated |
| Insertion force |
≦50 N |
| Withdrawal force |
≧50 N |
| Ambient temperature |
-40~+85℃ |
| Limiting temperature |
-40~+125℃ |
| Note |
Do not disconnect under load |
|
|
|
|
| |
|
|
|
 |
|
| Type / module number |
PV-P1_35 & PV-J1_35 |
| Size, mm (L x Ø) |
PV-P1_35, Positive |
51.0 x 13.6 |
| PV-J1_35, Negative |
51.0 x 13.6 |
| Conformity standards |
UL 1703 |
Intend to apply |
| EN 50521: 2008 |
R 44 780 11 397245 |
| Others |
IEC61215, IEC 61646, IEC 61730 |
| Rated voltages |
DC 1000V (TÜV) |
| Rated currents |
35A |
| Contact resistance |
≦ 0.25 mΩ |
| Wire size range (mm2) |
4 & 6 |
| Protection degree |
IP68(1.5m, 24hr) |
| Overvoltage category |
III, 8kV |
| Flammability class |
UL94-V0 |
| Material |
Insulation |
TPE/PA |
| Contact |
Cu/Tin plated |
| Insertion force |
≦50 N |
| Withdrawal force |
≧50 N |
| Ambient temperature |
-40~+85℃ |
| Limiting temperature |
-40~+125℃ |
| Note |
Do not disconnect under load |
|
|
|
|
| |
|
|
|
 |
|
| Type / module number |
PV-P2_20 & PV-J2_20 |
| Size, mm (L x Ø) |
PV-P2_20, Positive |
45.5 x 20.0 |
| PV-J2_20, Negative |
45.5 x 20.0 |
| Conformity standards |
UL 1703 |
Intend to apply |
| EN 50521: 2008 |
R 44 780 11 397245 |
| Others |
IEC61215, IEC 61646, IEC 61730 |
| Rated voltages |
DC 1000V (TÜV) |
| Rated currents |
20A |
| Contact resistance |
≦ 0.25 mΩ |
| Wire size range (mm2) |
2.5 & 4 |
| Protection degree |
IP67(to the housing wall) |
| Overvoltage category |
III, 8kV |
| Flammability class |
UL94-V0 |
| Material |
Insulation |
PA |
| Contact |
Cu/Tin plated |
| Insertion force |
≦50 N |
| Withdrawal force |
≧50 N |
| Ambient temperature |
-40~+85℃ |
| Limiting temperature |
-40~+125℃ |
|
|
|
|
| |
|
|
|
 |
|
| Type / module number |
PV-P2_35 & PV-J2_35 |
| Size, mm (L x Ø) |
PV-P2_35, Positive |
45.5 x 20.0 |
| PV-J2_35, Negative |
45.5 x 20.0 |
| Conformity standards |
UL 1703 |
Intend to apply |
| EN 50521: 2008 |
R 44 780 11 397245 |
| Others |
IEC61215, IEC 61646, IEC 61730 |
| Rated voltages |
DC 1000V (TÜV) |
| Rated currents |
35A |
| Contact resistance |
≦ 0.25 mΩ |
| Wire size range (mm2) |
4 & 6 |
| Protection degree |
IP67(to the housing wall) |
| Overvoltage category |
III, 8kV |
| Flammability class |
UL94-V0 |
| Material |
Insulation |
PA |
| Contact |
Cu/Tin plated |
| Insertion force |
≦50 N |
| Withdrawal force |
≧50 N |
| Ambient temperature |
-40~+85℃ |
| Limiting temperature |
-40~+125℃ |
|
|
|
|
| |
|
|
|
 |
|
| Type / module number |
PV-PJS3 & PV-PJB3 |
| Size, mm (L x Ø) |
PV-PJS3, Positive |
55.5 x 28.5 |
| PV-PJB3, Negative |
55.5 x 28.5 |
| Conformity standards |
UL 1703 |
Intend to apply |
| EN 50521: 2008 |
R 44 780 11 397245 |
| Others |
IEC61215, IEC 61646, IEC 61730 |
| Rated voltages |
DC 1000V (TÜV) |
| Rated currents |
20A |
| Contact resistance |
≦ 0.25 mΩ |
| Wire size range (mm2) |
2.5 & 4 & 6 |
| Protection degree |
IP67 |
| Overvoltage category |
III, 8kV |
| Flammability class |
UL94-V0 |
| Material |
Insulation |
PA |
| Contact |
Cu/Tin plated |
| Insertion force |
≦50 N |
| Withdrawal force |
≧50 N |
| Ambient temperature |
-40~+85℃ |
| Limiting temperature |
-40~+125℃ |
|
|
|
|
| |
|
|
|
 |
|
| Type / module number |
PV2-P1H_25 & PV2-J1_25 |
| Size, mm (L x Ø) |
PV2-P1H_25, Positive |
62.5 x 19.5 |
| PV2-J1H_25, Negative |
64.0 x 19.5 |
| Conformity standards |
UL 6703 |
E320476 |
| EN 50521: 2008 |
R 44 780 11 397226 |
| Others |
IEC61215, IEC 61646, IEC 61730 |
| Rated voltages |
DC 1000V (TÜV), DC 600 (UL) |
| Rated currents |
25A |
| Contact resistance |
≦ 0.2 mΩ |
| Wire size range (mm2) |
2.5 & 4 |
| Protection degree |
IP68(1.5m, 24hr) |
| Overvoltage category |
III, 8kV |
| Flammability class |
UL94-5V/V0 |
| Material |
Insulation |
PC/PA 66 |
| Contact |
Tin plated copper alloy |
| Retaining force of locking |
Connect - connect |
≧20kgf |
| Connect - cable |
≧20kgf |
| Ambient temperature |
-40~+85℃ |
| Limiting temperature |
-40~+125℃ |
| Note |
Do not disconnect under load |
|
|
|
|
| |
|
|
|
 |
|
| Type / module number |
PV2-P1H_35 & PV2-J1H_35 |
| Size, mm (L x Ø) |
PV2-P1H_35, Positive |
62.5 x 19.5 |
| PV2-J1H_35, Negative |
64.0 x 19.5 |
| Conformity standards |
UL 6703 |
E320476 |
| EN 50521: 2008 |
R 44 780 11 397226 |
| Others |
IEC61215, IEC 61646, IEC 61730 |
| Rated voltages |
DC 1000V (TÜV), DC 600 (UL) |
| Rated currents |
35A |
| Contact resistance |
≦ 0.2 mΩ |
| Wire size range (mm2) |
6 |
| Protection degree |
IP68(1.5m, 24hr) |
| Overvoltage category |
III, 8kV |
| Flammability class |
UL94-5V/V0 |
| Material |
Insulation |
PC/PA 66 |
| Contact |
Tin plated copper alloy |
| Retaining force of locking |
Connect - connect |
≧20kgf |
| Connect - cable |
≧20kgf |
| Ambient temperature |
-40~+85℃ |
| Limiting temperature |
-40~+125℃ |
| Note |
Do not disconnect under load |
|
|
|
|
| |
|
|
|
 |
|
| Type / module number |
PV2-P2 & PV2-J2 |
| Conformity standards |
UL 6703 |
E320476 |
| EN 50521: 2008 |
R 44 780 11 397226 |
| Others |
IEC61215, IEC 61646, IEC 61730 |
| Rated voltages |
DC 1000V (TÜV) |
| Rated currents |
35A |
| Contact resistance |
≦ 0.2 mΩ |
| Wire size range (mm2) |
2.5 & 4 & 6 |
| Protection degree |
IP67 |
| Overvoltage category |
III, 8kV |
| Flammability class |
UL94-5V/V0 |
| Material |
Insulation |
PC/PA 66 |
| Contact |
Tin plated copper alloy |
| Retaining force of locking |
Connect - connect |
≧20kgf |
| Connect - cable |
≧20kgf |
| Ambient temperature |
-40~+85℃ |
| Limiting temperature |
-40~+125℃ |
| Note |
Do not disconnect under load |
|
|
